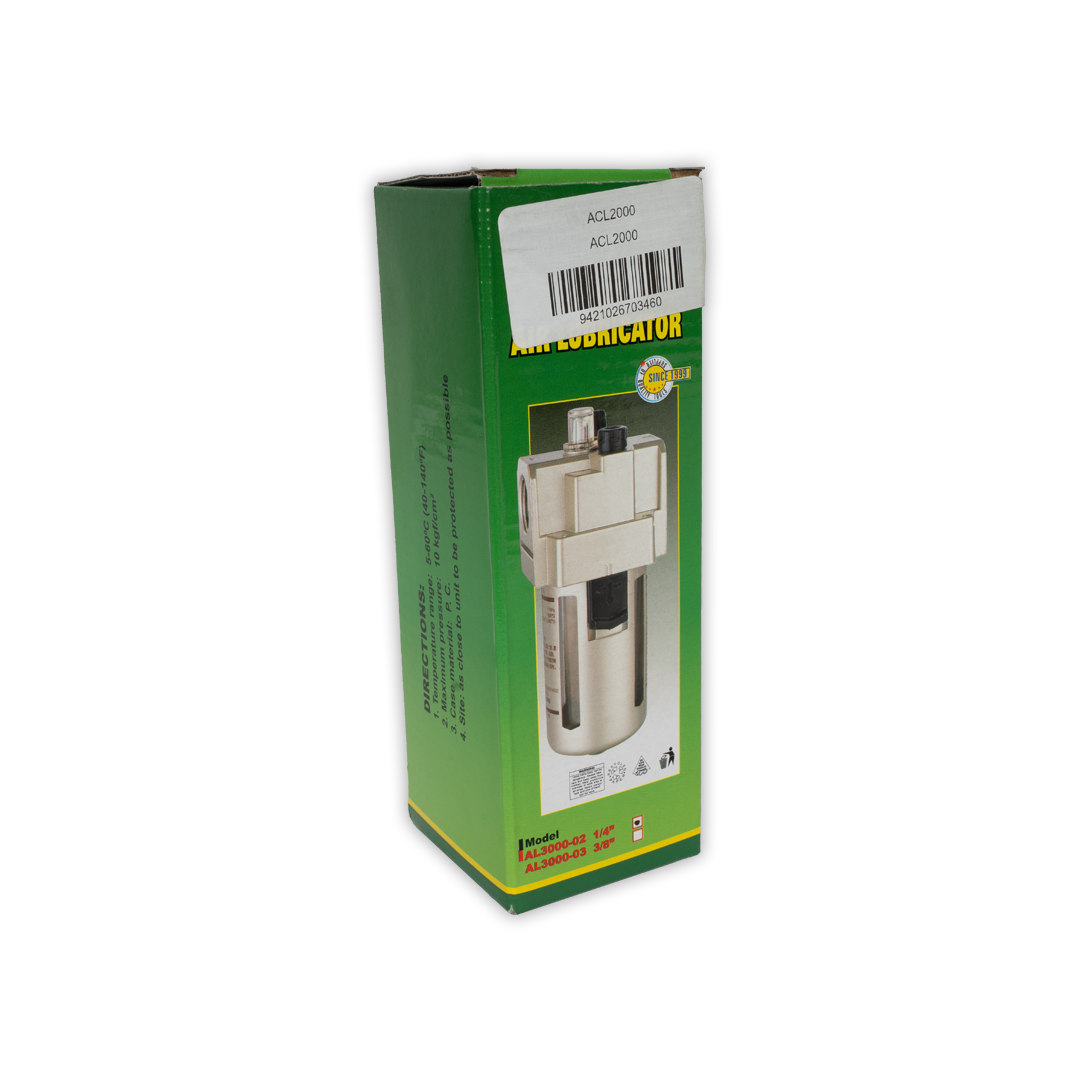

1/4" BSP Modular Air Line Lubricator

60CFM max flow; 150psi maximum pressure.

•  Lubricator maintains a constant oil-to-air density over a wide range of flow
•  Provides lubrication for multiple pneumatic tools/devices
•  An integral flow sensor provides proportional control
•  Comes equipped with a red 360° sight/feed dome
•  For the Max. Flow, the CFM is based on 90PSI inlet and 5PSI pressure drop
•  Modular connector allows easy removal and swap out
•  Up to 50-ft. pipe runs

Note: Polycarbonate bowls are not recommended for use in atmospheres containing chemicals such as acetone, benzene, carbon tetrachloride, ethylene dichloride, gasoline, toluene, and/or air compressor systems using synthetic fire-resistant lubricants.
